Most final drive failures don't happen without warning. The machine almost always gives you something first, a sound, a behavior, a small leak, something that shows up days or weeks before the drive actually gives out. The problem is that these symptoms are easy to rationalize away when you're in the middle of a job. "It's probably just the ground conditions." "It always sounds like that in cold weather." "The leak isn't that bad yet."
By the time the travel motor seizes or the planetary hub cracks, the repair is usually three to five times more expensive than addressing the symptom early would have been.
These are the seven warning signs that deserve attention, what causes each one, and what to do when you see them.
1. The Machine Pulls or Drifts to One Side While Traveling
This is one of the most common and clearly recognizable symptoms. You're trying to drive in a straight line and the machine consistently wants to curve left or right. You're correcting constantly. On a slope it's worse.
When both final drives are working correctly, they deliver equal torque to each track. If one drive is losing hydraulic pressure, has internal wear reducing its output, or has gear damage reducing efficiency, that side loses torque and the machine pulls toward it.
The first thing to check is whether the tracks are tensioned evenly. Unequal track tension can mimic this symptom. If tension is correct on both sides and the behavior continues, the issue is inside one of the final drives, or possibly in the hydraulic circuit feeding it. Check the swivel joint as well, a leak there reduces flow to the affected side and produces the same result.
Don't work around this symptom with constant steering corrections. The problem won't fix itself, and operating with unequal drive output puts additional stress on the working final drive.
2. Unusual Noises from the Travel Motor or Planetary Hub
A healthy final drive makes noise, but it's consistent and relatively quiet: a low hum at low speed, slightly more presence at high speed. Any new sound, or a sound that changes in character, is worth stopping for.
Grinding at low speed usually points to worn or damaged gear teeth or bearing surfaces running without adequate lubrication. A low growl that gets louder under load suggests bearing wear, often from oil contamination or a low gear oil level. A high-pitched whine at speed can indicate hydraulic pressure issues in the travel motor side rather than the planetary hub, but both need investigation.
The distinction between sounds coming from the planetary hub and sounds coming from the hydraulic motor helps narrow down where the problem is. Noise that changes with travel speed points more toward the gearbox. Noise that changes with hydraulic system load (for instance, it's worse when climbing a grade but not when driving on flat ground) suggests the hydraulic motor.
Either way, new noise from a final drive is not something to run until the next service. The final drive motor system on an excavator works under significant load, and noise is the first signal that something inside is failing.
3. Visible Oil Leaks Around the Final Drive
There are two types of leaks from a final drive and they come from different places.

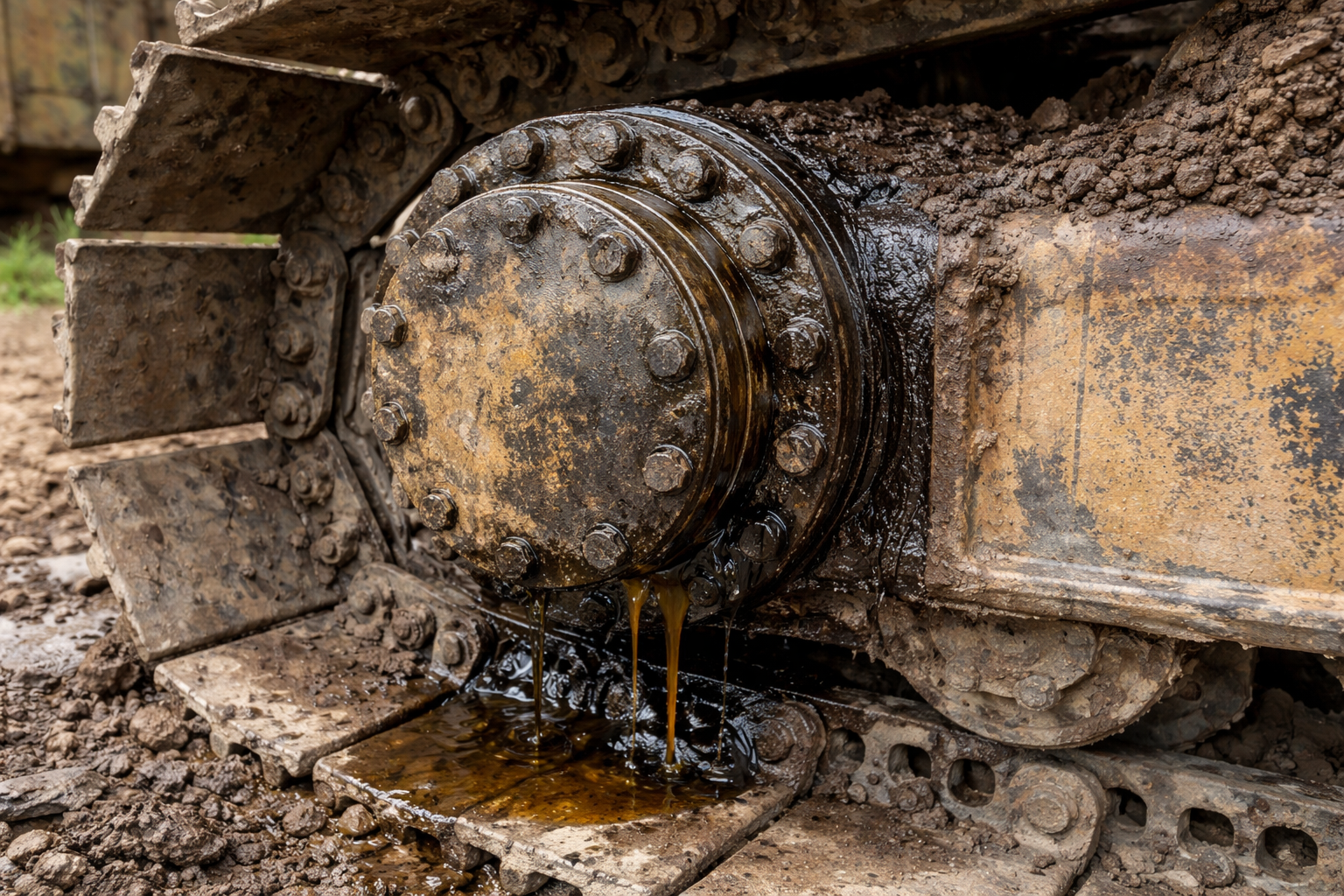

Gear oil leaks show up around the face seal between the planetary hub and the track sprocket area. The face seal, sometimes called a duo-cone seal or floating face seal, is what keeps gear oil inside the planetary hub and contamination out. When it fails, you'll see oil dripping from the sprocket area or find gear oil on the track itself. This is the most common leak type and the most serious to ignore.
Hydraulic fluid leaks show up at the hose connections or at the junction between the hydraulic motor body and the rest of the drive. These can be as minor as a weeping fitting or as serious as a failed motor seal.
Both types of leaks create the same risk: fluid out means contamination in. Once abrasive particles get inside the planetary hub through a failed face seal, the internal damage accelerates quickly. Most final drive failures can be traced back to contamination that entered through a seal that was leaking before anyone addressed it.
Wipe the area clean, note where the leak is coming from, and get it looked at. A seal replacement is a fraction of the cost of a failed gearbox.
4. Loss of Travel Speed or Reduced Power Under Load
If the machine used to climb a certain grade comfortably and now struggles with it, or if travel speed has dropped noticeably on flat ground, the final drive is losing efficiency somewhere in the system.
This symptom has multiple possible causes. On the hydraulic motor side, internal wear increases internal leakage, meaning pressurized oil bypasses the rotating group instead of driving it, and the motor produces less torque for the same input flow. On the gearbox side, damaged gears or bearing failure creates friction losses that absorb output before it reaches the sprocket.
It's worth checking the case drain filter at this point. A clogged case drain filter creates backpressure in the case drain line, which reduces the efficiency of the hydraulic motor and can cause the symptoms of power loss even when the motor itself is intact. This is a cheap and fast check that rules out a simple fix before assuming the motor needs replacement.
Also check the hydraulic fluid level in the main reservoir and verify that the machine isn't stuck in high-speed mode. The two-speed travel motor on mini excavators and CTLs operates differently in high and low mode, and a control system fault can leave the machine in high speed with reduced torque even when the operator hasn't selected it.
5. Overheating - The Final Drive Is Hot to the Touch
Final drives run warm under normal operation. If you put your hand near the housing after a work cycle and can't hold it there, or if you see heat shimmer off the case, something is wrong.
The most common cause is a clogged case drain filter. The case drain line removes excess hydraulic fluid from inside the motor casing, relieving pressure buildup. When the filter is blocked, that pressure can't escape, and it builds up inside the motor until seals fail and heat spikes. This is one of the more preventable failure modes because a case drain filter replacement is straightforward and inexpensive.
Low gear oil in the planetary side also causes overheating. Without adequate lubrication, the gear surfaces generate friction heat with nowhere to go. Contaminated gear oil that has lost its viscosity fails at film formation and produces the same result even when the oil level reads correct.
Stop the machine if a final drive is running extremely hot. Running through an overheating event causes rapid progression of seal and bearing failure. Let it cool, check the case drain filter, check the gear oil level and condition, and don't restart until you understand what's causing the heat.
6. Jerky or Inconsistent Track Movement
Smooth, predictable movement is a sign of a healthy hydraulic circuit and final drive. If the track on one side stutters, hesitates between commands, or seems to skip under load, the hydraulic pressure to that drive motor is either inconsistent or insufficient.
This can come from the swivel joint, which distributes hydraulic flow from the main circuit to the travel motors as the upper structure rotates. A worn or leaking swivel joint reduces flow and creates the kind of pressure drop that produces jerky travel behavior.
It can also come from internal wear in the travel motor itself. Worn pistons or valve plates in the axial piston motor allow hydraulic fluid to bypass internally, which creates pressure pulses rather than smooth, consistent flow. The track responds with stuttering movement rather than smooth rotation.
Check hydraulic fluid level and condition first, then inspect the swivel joint for leaks, before concluding the travel motor is the source.
7. Metal Shavings or Gritty Texture in the Gear Oil
This one doesn't show up while you're operating the machine. It shows up when you drain the gear oil for a change.
Some fine metal content in used gear oil is normal. Gear surfaces wear gradually and release microscopic particles throughout their service life. What's not normal is visible metal flakes, a thick metallic paste at the bottom of the drain, or oil that feels gritty when you rub it between your fingers.
That level of metal contamination means internal wear has progressed significantly. It could be bearing failure, it could be gear damage, it could be the result of running with contaminated or depleted oil for too long. The oil change itself won't fix the underlying problem; it removes the contamination from circulation but doesn't repair damaged surfaces.
At this point, open the inspection port if your machine has one, or have the gearbox inspected before putting it back into heavy use. Depending on what's inside, the right answer might be a rebuild or a replacement final drive motor. Running a final drive with significant internal metal contamination in the oil typically leads to rapid total failure.
What to Do When You See These Symptoms
The decision tree is straightforward. Check the easy things first: hydraulic fluid level, gear oil level and condition, case drain filter, track tension, swivel joint for leaks. These can produce symptoms identical to internal motor damage and cost almost nothing to check. For guidance on removal and reinstallation, the excavator final drive removal and replacement guide at Hydraulic America covers the process step by step.
If the symptoms persist after ruling out external causes, the final drive itself needs to be inspected. At that point, the comparison is between the cost of a rebuild and the cost of a replacement unit. Many operators find that a replacement from a trusted supplier is faster, better-warranted, and comparable in price to a full rebuild, especially for smaller machines.
Hydraulic America carries replacement final drive motors for a wide range of brands: Caterpillar, Hitachi, Doosan, Bobcat, and many others. Our team can confirm the right unit by model and serial number so you order the correct drive the first time. Call 1-844-232-0906 or fill out the quote form online and we'll get back to you the same day.
The earlier you catch a symptom, the more options you have. A final drive motor that's diagnosed early is a repair or a planned replacement. One that runs to failure is an emergency, and emergencies cost more.
