Most equipment owners never think about their case drain filter until something goes wrong. By then, it's usually too late - the damage is done, the motor is trashed, and a bill that could have been avoided is sitting on the table. So let's talk about what this small component actually does, where it lives, and why ignoring it is one of the more expensive mistakes you can make in heavy equipment maintenance.
The Case Drain Line: What It Does and Why It Exists
Every piston-type final drive motor leaks hydraulic fluid internally. That's not a defect - it's how the system is designed. That internal leakage lubricates the piston shoes, the swash plate, and the surface between the cylinder block and the valve plate. Without that fluid film, you'd have metal grinding on metal at high pressure, and the motor would fail fast.
The problem is that this leaked fluid has to go somewhere. It can't stay inside the motor housing because pressure would build up and create its own set of problems. So it drains back to the hydraulic tank through a dedicated low-pressure line called the case drain line. This is typically the smallest hydraulic line connected to your final drive - if you see two large lines and one small one going to your travel motor, the small one is almost certainly the case drain.
The case drain line hydraulic motor circuit is simple by design, but that simplicity is deceptive. Because it handles contaminated fluid coming out of the motor - metal particles, wear debris, slivers from normal component wear - it needs a filter. That filter is the case drain filter.
What Is the Case Drain Filter and Where Do You Find It

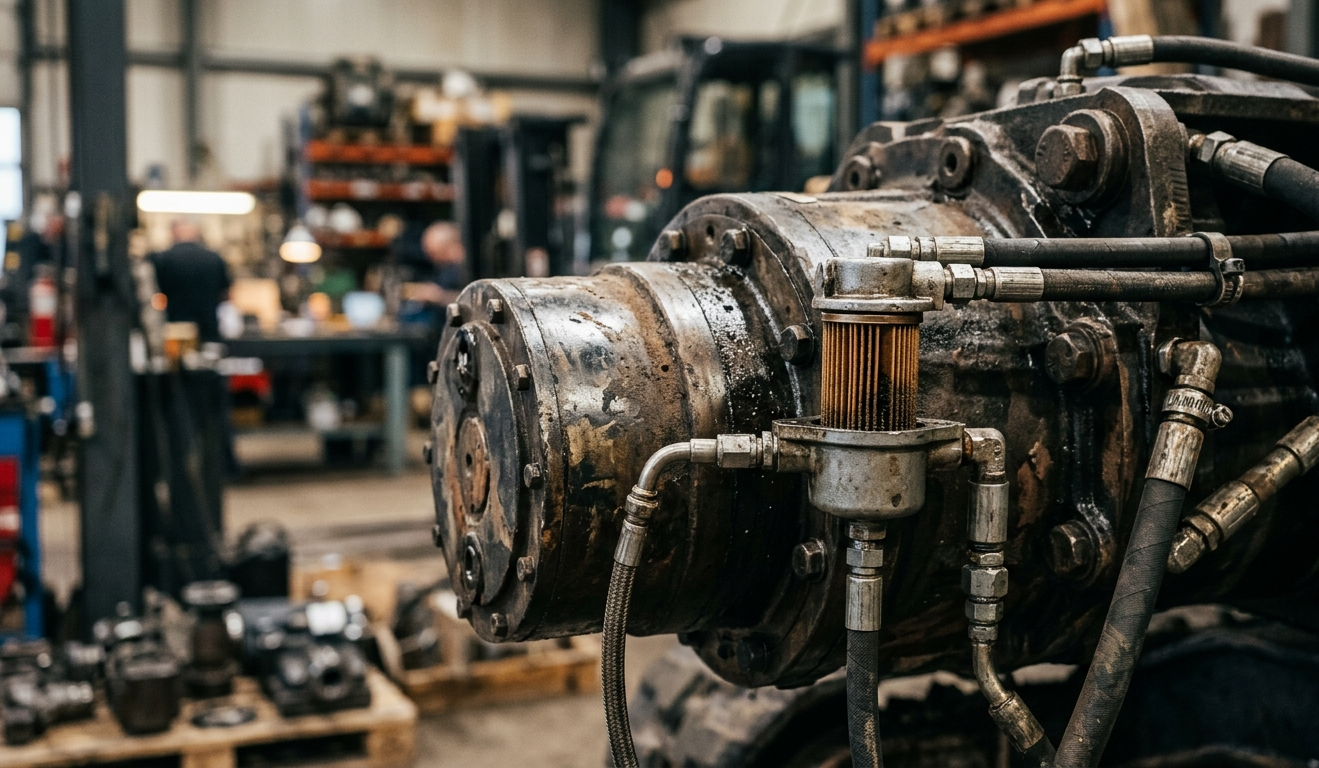

The case drain filter sits inline on the case drain line, between the travel motor and the hydraulic tank. Physically, it looks like a small aluminum canister, roughly 1.25 inches in diameter and about 3 to 3.5 inches long. Inside is a sintered bronze filter element, held in place by a couple of springs. It's often overlooked during regular service because it doesn't look like a conventional spin-on filter, and plenty of shops don't even know their machine has one.
To find it: trace the smallest hydraulic line from your final drive back toward the machine. The canister will be somewhere along that line. On Bobcat compact track loaders and skid steers, it's particularly common - about 90% of Bobcat machines with final drive motors use a case drain filter. Many CAT and Komatsu excavators have them too, though placement varies by model.
If the filter element inside has turned dark or black instead of the original bronze color, it needs to be replaced - not cleaned and reinstalled. Replace it.
What Happens When the Case Drain Filter Clogs
This is where things get ugly. A clogged case drain filter means fluid can no longer pass freely back to the tank. Pressure starts building on the hydraulic side of the motor. The case drain line is designed to run at minimal pressure - when that changes, the motor internals start seeing stress they weren't built for.
The Sequence of Damage
First, the lower shaft seal fails. Hydraulic fluid at elevated pressure forces its way past the seal into the gear section. Now you have a mixture of hydraulic fluid and gear oil, which is a sign of serious internal contamination.
Next, the elevated pressure keeps looking for somewhere to go. Piston shoes start taking damage. Bearings fail under the stress. On radial piston motors, the cam ring can be permanently scarred. On axial piston motors, the swash plate and valve plate surfaces can be compromised.
In the worst cases - and this does happen - the cover plate cracks or blows off entirely. The motor is destroyed. This is not a repair situation. This is a replacement situation, and it's an expensive one.
The entire chain of failure starts from a $20 filter that didn't get changed.
Clogged Case Drain Filter Symptoms to Watch For
The signs aren't always dramatic before failure. Watch for:
- A mixture of gear oil and hydraulic fluid when you check the final drive oil - this means a seal has already gone
- Sluggish track travel or one track that seems weaker than the other
- Any unusual heat coming from the final drive area
- Elevated hydraulic oil temperature across the system
If you notice grey or milky-looking gear oil when you drain the planetary hub, stop and investigate the case drain filter before running the machine further. For more on what causes oil contamination inside a final drive, see our article on what causes final drive motor oil leaks.
How Often Should You Change the Case Drain Filter
The straightforward answer: change it every time you change the other hydraulic filters on the machine. If your service interval calls for a hydraulic filter change every 500 hours, the case drain filter should come out at the same time.
If you've recently had a catastrophic final drive failure - bearing collapse, major seal failure, anything that generated significant metal debris inside the motor - change the case drain filter immediately and flush the system before running a new or replacement motor. Metal particles from a failed drive can load up a fresh filter very quickly and trigger the same failure cycle all over again.
Check the filter more frequently if you're working in dusty or abrasive conditions. Environments with a lot of fine dirt, sand, or concrete dust put more stress on all hydraulic seals, which means more contamination entering the system and more load on the case drain filter.
Replacing the Filter: A Quick Walkthrough
You don't need a shop to do this. The process is straightforward on most machines:
- Locate the case drain line and trace it to the filter canister.
- Have clean rags ready and plug the hydraulic lines immediately after disconnecting to prevent contamination.
- Unscrew the hex nut at one end to access the filter element.
- Remove the element, check its color and condition, then install the new element.
- Reassemble, reconnect the lines, and check for leaks before running the machine.
If you're replacing a final drive motor - whether due to wear or a sudden failure - see our guide on final drive parts and how to service them and our breakdown of why final drive motors fail to make sure you understand the full picture before the new unit goes in.
New Final Drive Motors From Hydraulic America
At Hydraulic America, we supply brand-new final drive motors for Bobcat, Caterpillar, Komatsu, Hitachi, Kobelco, Doosan, John Deere, and most other major excavator and CTL brands. Every motor ships fully assembled and ready to bolt on, with a 2-year unlimited-hour warranty. Free shipping covers the continental US and Canada.
Browse Bobcat final drives, Caterpillar final drives, or the full final drive motor catalog. Questions about compatibility? Call us at 1-844-232-0906 and one of our parts specialists will find the right fit for your machine.
Changing the case drain filter takes about 15 minutes. Replacing a motor that was destroyed because the filter wasn't changed takes considerably longer - and costs considerably more. Check it on your next service.
